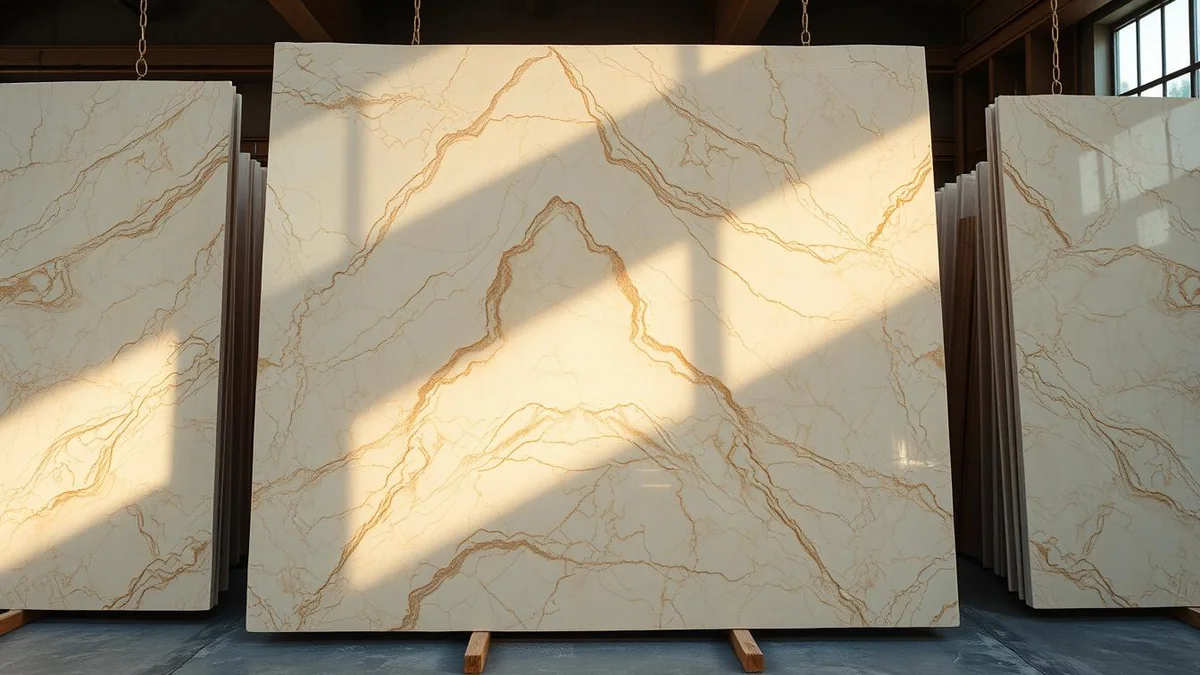

Taj Mahal Quartzite Slabs in Charleston: Hand-Selected Bundles, Translucency Testing, and Bookmatched Fabrication
High-end residential design across the South Carolina Lowcountry places high value on architectural finishes that combine geological durability with subtle visual depth. Throughout historic Charleston residences, waterfront homes across Mount Pleasant and Daniel Island, and custom properties on Kiawah Island, kitchen islands and full-height wall features serve as the central design statements of open-concept spaces. For many homeowners and designers, classic white Italian marble presents high maintenance challenges due to acid etching and scratching, while engineered quartz lacks natural translucency and unique movement.
Petrographic Mineralogy: Metamorphic Quartzite vs. Dolomitic Importers
Understanding the performance of Taj Mahal quartzite begins with its geological origin. Quarried primarily in the northeastern state of Ceará, Brazil, authentic Taj Mahal is a metamorphic rock formed by the recrystallization of pure quartz arenite sandstone under intense tectonic heat and pressure.
+-----------------------------------------------------------------------------------------+
| PETROGRAPHIC COMPARISON MATRIX |
+--------------------------+-----------------------+------------------+-------------------+
| Stone Classification | Primary Mineral Base | Mohs Hardness | Acid Etch Threat |
+--------------------------+-----------------------+------------------+-------------------+
| Authentic Taj Mahal | Recrystallized Quartz | 7.0 to 7.5 | 100% Acid-Inert |
| Calcitic Marble | Calcium Carbonate | 3.0 to 3.5 | Severe Etching |
| Dolomitic "Soft" Marble | CaMg(CO₃)₂ Carbonate | 3.5 to 4.5 | Moderate Etching |
| Plutonic Granite | Quartz / K-Feldspar | 6.0 to 6.5 | 100% Acid-Inert |
+--------------------------+-----------------------+------------------+-------------------+
The Crystalline Mosaic
During metamorphism, tectonic forces exceeding 600°C to 800°C fuse individual silica sand grains into an interlocking mosaic of solid quartz ($SiO_2$):
-
Elimination of Porous Voids: As quartz crystals interlock, the microscopic spaces between grains collapse, resulting in a dense stone with low internal porosity (water absorption typically between 0.05% and 0.15% by weight).
-
Absence of Carbonates: Authentic Taj Mahal contains virtually zero calcium carbonate ($CaCO_3$). This distinguishes it chemically from dolomitic marbles (often mislabeled as "soft quartzites" in the stone trade), which react with acids and dull when exposed to lemon juice or vinegar.
-
Secondary Mineral Veining: The stone's characteristic warm cream, ivory, and amber veining comes from minor inclusions of iron oxides, sericite, and muscovite mica that were compressed and stretched into fluid bands during tectonic movement.
Hand-Selected Bundles: Warehouse Auditing and Lot Consistency
Because natural stone is quarried in large blocks and sliced into slabs, evaluating complete bundles at a local stone warehouse is essential for maintaining aesthetic consistency across multi-slab projects.
+-------------------------------------------------------------------------+
| WAREHOUSE BUNDLE SELECTION SEQUENCE |
+-------------------------------------------------------------------------+
| [ Step 1: Block Verification ] -> Verify matching block index numbers |
| [ Step 2: Lighting Audit ] -> Inspect slabs under 5000K LED light |
| [ Step 3: Fissure Inspection ] -> Cross-directional raking light check |
| [ Step 4: Resin Backing Check] -> Confirm clear, bubble-free epoxy mesh |
+-------------------------------------------------------------------------+
Sequential Slicing and Tone Consistency
A single kitchen layout with perimeter counters, a central island, and a full-height backsplash often requires two to three slabs. Sourcing slabs from mismatched bundles or separate quarry blocks can lead to visible discrepancies:
-
Quarry Block Identification: Slabs are numbered sequentially from a single block (e.g., Block 842, Slabs 01 through 26). Hand-selecting consecutive slabs from the same bundle ensures uniform background tones (from pale ivory to warm taupe) and consistent vein thickness across all kitchen runs.
-
Lighting Evaluation: Stone warehouses use balanced 5000K daylight-spectrum lighting to reveal true color undertones. Evaluating slabs under varied lighting prevents selecting a bundle that appears crisp white in a warehouse but shifts to a greenish-gray cast under warm residential lighting.
Distinguishing Natural Veins from Structural Fractures
Natural quartzite features organic vein lines that must be carefully distinguished from structural fissures:
-
Metamorphic Inclusions: Organic veins represent recrystallized mineral bands that share the same hardness and density as the surrounding stone.
-
Structural Fissures: Fissures are mechanical fractures across crystalline boundaries that can open during fabrication or transport. Experienced fabricators inspect slabs using cross-directional raking light and run fingernail checks along vein paths to confirm the surface is smooth and structurally sound.
-
Resin Mesh Inspection: Slabs are typically backed with fiberglass mesh and vacuum-infused clear epoxy resin at the quarry processing plant to stabilize the material during international shipping. Fabricators confirm that the resin is clear, smooth, and free of ambering, cloudy spots, or surface pinholes.
Field Diagnostics: Translucency Testing and Petrographic Verification
Before finalizing the purchase of Taj Mahal quartzite slabs in Charleston, verifying the material's mineral purity through straightforward field tests confirms you are receiving true quartzite rather than a mislabeled dolomitic stone.
[ Warehouse Field Diagnostics ]
|
+-------------+-------------+
| |
[ Translucency Flashlight Test ] [ Mohs Scratch Resistance ]
| |
(Sub-Surface Light Penetration) (Abrades High-Carbon Steel)
| |
+-------------+-------------+
|
[ Acid Etch Verification ]
|
(Zero Fizzing / No Etch)
The Translucency Flashlight Test
Pure crystalline quartz naturally transmits light. Because Taj Mahal is composed almost entirely of recrystallized quartz crystals without opaque feldspars, it displays distinctive translucency:
-
High-Lumen Light Placement: Place a high-output LED flashlight (800+ lumens) directly against the polished face or edge of a 3 cm slab in a darkened area of the warehouse.
-
Light Penetration: In authentic Taj Mahal, light penetrates 1/2 inch to 1 inch into the stone, creating a soft, warm radial glow around the light source.
-
Identifying Impurities: Opaque granites block light entirely, while dolomitic marbles produce a flat, milky halo without the internal crystal glow characteristic of pure quartz.
The Glass and Knife Scratch Test
The Mohs mineral hardness scale provides a clear test for material identity:
-
Testing Hardness: True quartzite rates between 7.0 and 7.5 on the Mohs scale, making it harder than glass (5.5) and stainless steel or high-carbon knife blades (5.0 to 6.0).
-
The Scratch Protocol: Dragging the edge of a clean glass tile or utility blade firmly across an unfinished sample edge of true Taj Mahal will not scratch the stone. Instead, the hard quartz abrades the metal or glass, leaving a fine residue line that wipes away with a damp cloth. If the blade cuts a distinct groove into the stone, the material is a softer calcitic or dolomitic marble.
Acid Etching Verification
Applying a drop of household acid (such as lemon juice or white vinegar) to an unsealed corner of the slab confirms chemical inertness:
-
Reactivity Check: True quartzite contains no calcium carbonate and shows zero reaction to acid. In contrast, calcitic and dolomitic marbles will produce microscopic effervescence (bubbling) within minutes, leaving a dull, etched ring that ruins the polished finish.
Bookmatched Fabrication: Visual Symmetry and Vein-Flow Alignment
For high-profile architectural applications—such as two-story fireplace surrounds, primary bath wet walls, and expansive waterfall kitchen islands—bookmatching creates a striking, balanced visual presentation.
[ Bookmatched Seam Flow Architecture ]
+--------------------+--------------------+
| Slab A | Slab B |
| \ | / |
| \ Amber Vein | Amber Vein / |
| \ | / |
| \ | / |
| \ | / |
+--------------------+--------------------+
^ Centerline Seam
The Mechanics of Bookmatching
Standard stone slabs are polished on the same face across an entire bundle. Bookmatched slabs require custom processing at the quarry mill:
-
Mirror-Face Polishing: Slabs are sliced sequentially from the block, and alternating faces are polished (Slab 1 Face A, Slab 2 Face B).
-
Symmetrical Layout: When the two slabs are opened edge-to-edge like the pages of a book, their mineral veining mirrors each other across the central seam line, producing symmetrical geometric and organic patterns.
Full-Height Backsplashes and Waterfall Drops
-
Waterfall Island Drops: To continue the pattern down the side of an island, the horizontal top slab and vertical drop apron are cut with a 45-degree miter. Fabricators program cut paths to preserve vein continuity, allowing amber and taupe veining to flow over the edge and down to the floor without interruption.
-
Full-Height Stone Backsplashes: Extending the same Taj Mahal slab from the countertop up to upper cabinetry or ceiling lines eliminates grout lines and highlights natural movement behind range hoods and cooking zones.
CNC Waterjet Machining and Tooling Parameters
While the high mineral hardness of Taj Mahal quartzite provides long-term scratch resistance for homeowners, it presents notable challenges during fabrication. Cutting and milling 3 cm quartzite requires specialized diamond tooling and computerized equipment.
[ Digital 3D Laser CAD File ]
|
v
[ Automated Multi-Axis CNC SawJet ]
|
+------------+------------+
| |
[ Diamond Circular Sawing ] [ 60,000 PSI Abrasive Waterjet ]
| |
(Soft-Bond Cobalt Matrix) (Clean Interior Cutout Corners)
| |
+------------+------------+
|
v
[ CNC Spindle Profiling & Wet Diamond Polishing ]
Managing Tool Wear and Cutting Speeds
Because quartzite registers 7.0+ on the Mohs scale, standard diamond blades designed for granite will quickly overheat and glaze over:
-
Soft-Bond Diamond Segments: Fabricators use soft-bond bronze or cobalt alloy segments that wear away at a controlled rate, continuously exposing fresh, sharp diamond crystals to cut the dense stone cleanly.
-
Reduced Feed Rates: Bridge saws processing 3 cm Taj Mahal must run at reduced feed rates (typically 30 to 50 inches per minute, compared to 80 to 120 inches per minute for standard granite) to prevent blade deflection, slab blowout, or edge chipping.
-
Continuous Flood Cooling: High-volume water cooling (15 to 25 gallons per minute) directed at the cutting contact point prevents frictional heat buildup that could cause micro-fracturing along natural vein lines.
Precision Waterjet Cutting for Undermount Cutouts
Computer-controlled abrasive waterjets are essential for cutting detailed profiles:
-
60,000 PSI Garnet Stream: Slicing through stone using a cold, high-pressure water stream mixed with fine alluvial garnet abrasive eliminates thermal shock around sink and cooktop cutouts.
-
Eliminating Blind Over-Cuts: Circular saw blades inevitably leave blind over-cuts on the underside of sink cutouts due to blade curvature. The waterjet cuts sharp inside corners cleanly without over-cutting, protecting the stone's structural integrity around narrow sink rails.
Edge Profiling Options and Structural Joinery
Edge treatments define both the aesthetic character and the impact resistance of finished quartzite countertops.
+-----------------------------------------------------------------------------------------+
| EDGE PROFILE SPECIFICATIONS |
+--------------------------+-----------------------+------------------+-------------------+
| Profile Designation | Physical Geometry | Chip Resistance | Architectural Use |
+--------------------------+-----------------------+------------------+-------------------+
| Eased (Flat Polish) | 1/8" to 3/16" Bevel | High | Modern / Minimal |
| Demi-Bullnose | Curved Top / Flat Base| Very High | Active Family Prep|
| Full Bullnose | Complete Semi-Circle | Maximum (Smooth) | Traditional |
| Ogee (Classic) | S-Shaped Double Curve | Moderate to Low | Formal / Ornate |
| Mitered Drop Edge | 45° Chamfered Apron | High (Structural)| Bold Monolithic |
+--------------------------+-----------------------+------------------+-------------------+
Eased Profiles vs. Ornate Radii
-
Eased Profiles (1/8" to 3/16" Radius): The preferred profile for contemporary and transitional Lowcountry homes. Softening the sharp top corner creates a subtle curve that deflects kinetic energy during accidental impacts with heavy pots, reducing edge chipping while maintaining clean lines.
-
Complex Profiles (Ogee, Dupont): While visually striking in formal kitchens, ornate multi-curved profiles expose thin, delicate stone ridges that are more vulnerable to impact fractures along busy work surfaces.
[ 45-Degree Miter Joint Assembly ]
+---------------------------------------+
| |
| Horizontal Top Slab Surface |
| /| |
+---------------------------------+ | |
| | |
|/ |
+-----+
| | <-- Vertical Apron
| | (Drop Edge)
+-----+
Fabricating Mitered Drop Aprons
To give an island the appearance of an extra-thick monolithic stone block (2 to 6 inches) without the weight of an ultra-thick slab, fabricators assemble precision mitered aprons:
-
Precision 45-Degree Cuts: The horizontal top slab and vertical drop apron are cut along their meeting edges at an exact 45-degree angle using CNC bridge saws.
-
Grain and Vein Continuity: Cutting the vertical apron directly from the adjacent section of the same slab ensures that mineral veining wraps over the edge and down the vertical face.
-
Structural Epoxy Bonding: The mitered seam is bonded using structural, color-matched knife-grade vinyl-ester or epoxy adhesives reinforced with an internal stone backing cleat.
On-Site Installation and Structural Substrate Integration
Natural stone features exceptional compressive strength, but its tensile elasticity is low; it cannot flex or bend across an uneven plane without concentrating stress. The installation team executes strict jobsite preparation to prevent joint failure or cracked slabs.
+-------------------------------------------------------------------------+
| SUBSTRATE SUPPORT & CANTILEVER STACK |
+-------------------------------------------------------------------------+
| [ Top Surface ] -> 3cm (1-1/4") Taj Mahal Quartzite Slab |
| [ Bonding Bed ] -> Neutral-Curing 100% Silicone Adhesive Beads |
| [ Support Cleats ] -> Inset Cold-Rolled Structural Steel Plates (1/2") |
| [ Cabinet Base ] -> Solid, Level Framing Box (L/720 Deflection Spec) |
+-------------------------------------------------------------------------+
Adhering to the L/720 Substrate Deflection Standard
Countertop installations must comply with Natural Stone Institute (NSI) engineering standards:
-
Deflection Thresholds: Supporting cabinetry and subflooring assemblies must not deflect more than $L/720$ of the span under full dead and live design loads. Across a 10-foot span of base cabinets, vertical sag under full weight must remain under 1/6 of an inch ($4.2\text{ mm}$).
-
Coplanarity Verification: Cabinets must sit level across their entire run, with maximum deviations not exceeding 1/8 inch across a 10-foot straightedge. Installers use high-density, non-compressible plastic shims beneath cabinet bases to establish a flat plane.
Cantilever Overhangs and Hidden Structural Steel Support
Deep island breakfast bars and cantilevered seating areas require dedicated structural reinforcement to prevent tipping or fracture when weight is placed on the edge:
-
The Rule of Thirds: At least two-thirds (2/3) of the stone slab's overall width must be supported directly by base cabinetry; no more than one-third (1/3) may extend unsupported as a cantilever.
-
Maximum Unsupported Spans: For standard 3 cm (1-1/4 inch) quartzite, unsupported overhangs should never exceed 10 inches without reinforcement.
-
Flush-Mounted Structural Steel Brackets: For overhangs extending 10 to 18 inches, installers inset heavy-duty structural steel plates (typically 1/4-inch to 1/2-inch thick cold-rolled steel, 2.5 to 3 inches wide) flush into the top of the cabinet framing. Spaced roughly 18 to 24 inches on center, these hidden steel bars support the cantilevered stone without requiring knee-knocking vertical corbels or posts.
Seam Joining and Undermount Sink Cleating
-
Pneumatic Vacuum Seam Setters: Installers secure pneumatic vacuum cups to both sides of the seam. Integrated electric vacuum pumps pull the stone edges together tightly while micro-leveling thumbscrews adjust height differences, pulling the joint flush to produce seams narrower than 1/16 of an inch ($1.5\text{ mm}$).
-
Undermount Sink Mechanical Anchoring: Sinks are supported mechanically from below using heavy-duty steel under-sink support rails secured directly into the cabinet walls, or threaded drop-in brass anchors set into the underside of the stone with stainless-steel sink clips. A continuous bead of neutral-cure 100% mildew-resistant silicone is applied between the sink rim and the polished stone cutout lip, creating a flexible, watertight seal.
Sealing Chemistry and Long-Term Surface Maintenance
Natural stone surfaces require proper chemical sealing and non-destructive routine cleaning to protect against everyday liquid spills.
+-------------------------------------------------------------------------+
| ARCHITECTURAL STONE CARE: DO's AND DON'Ts |
+-------------------------------------------------------------------------+
| [√] Clean surfaces with warm water and pH-neutral specialized soaps. |
| [√] Blot spills immediately using soft, absorbent microfiber cloths. |
| [X] Never use acidic cleansers, vinegar, citrus, or ammonia formulas. |
| [X] Never cut directly on surfaces; always use dedicated cutting boards.|
| [X] Avoid setting blistering-hot cookware directly onto treated stone. |
+-------------------------------------------------------------------------+
The Chemistry of Penetrating Fluoropolymer Sealers
Natural stone sealers are divided into topical coatings and penetrating (impregnating) sealers:
-
Topical Sealers (Avoid): Acrylic or wax topical sealers create a plastic film over the surface. These wear down unevenly, turn cloudy in moist areas, and trap moisture beneath the coating.
-
Penetrating (Impregnating) Sealers: Professional maintenance relies on solvent- or waterborne fluorochemical penetrating sealers. These small fluoropolymer molecules penetrate deep into the stone's capillary pores, bonding chemically to the internal cell walls.
-
Altering Surface Tension: Impregnating sealers modify the surface energy of the stone without blocking breathability. Water, culinary oils, and staining liquids bead up on top of the slab rather than drawing into the pores, providing a generous window to blot spills clean.
Daily Cleaning and Chemical Restrictions
-
Recommended Daily Cleaning: Clean surfaces daily using clean warm water and a small amount of mild, pH-neutral dish soap or a dedicated stone cleaner, followed by a dry microfiber cloth.
-
Chemical Cleaners to Avoid: Never clean natural stone with acidic or caustic household cleaners, including vinegar, lemon juice, bleach, ammonia, or toilet bowl cleaners. On quartzites, repeated contact with harsh cleaners breaks down the protective fluoropolymer sealer.
Frequently Asked Questions (FAQ)
What makes Taj Mahal quartzite slabs in Charleston a safer choice than marble for kitchens?
Taj Mahal quartzite is a metamorphic rock composed of recrystallized quartz ($SiO_2$). It rates 7.0 to 7.5 on the Mohs hardness scale, making it significantly harder than marble (rated 3.0 to 3.5). Unlike marble, which contains calcium carbonate, Taj Mahal contains no carbonates and will not etch or dull when exposed to common kitchen acids like vinegar, lemon juice, or wine.
How does the translucency test verify authentic Taj Mahal quartzite?
Pure crystalline quartz naturally transmits light. Placing a high-output LED flashlight against the surface or edge of authentic Taj Mahal causes light to penetrate 1/2 inch to 1 inch into the slab, creating a warm, internal glow. Opaque granites block light entirely, while dolomitic marbles produce a flat, milky surface reflection without the deep crystalline light transmission of true quartzite.
Can Taj Mahal quartzite be bookmatched for full-height backsplashes?
Yes, provided consecutive slabs are purchased from a bookmatched bundle. In these bundles, consecutive slabs are polished on opposite faces (Face A and Face B). When installed side-by-side, their veining mirrors each other across the central seam like an open book, creating symmetrical patterns ideal for full-height backsplashes, waterfall islands, and feature walls.
Can hot pots and pans be placed directly onto Taj Mahal quartzite?
Yes. Natural quartzite forms under high tectonic heat and easily withstands temperatures up to 400°F (204°C) without blistering, melting, or discoloring. However, to prevent localized thermal shock across cold stone overhangs and to preserve the life of applied fluoropolymer sealers, using trivets beneath hot cookware remains a recommended best practice.
How often should Taj Mahal quartzite countertops be sealed?
Because Taj Mahal is dense with low porosity (0.05% to 0.15% absorption), it typically requires sealing with a penetrating fluoropolymer sealer only once every 12 to 24 months. Homeowners can test their seal by leaving a few tablespoons of water on the surface for 15 minutes; if the water beads up, the seal is intact. If it absorbs and leaves a dark spot, the countertop should be resealed.
